Check BIM requirements with IDS

Introduction

The BIM requirements screen holds your IDS requirement sets. This is where you create a new rule, import an existing .ids file or edit a set already in place. Once the requirement is linked to an IFC model revision, the audit starts on its own. This guide walks through every step: creation, import, linking and reading the results.

Why check BIM requirements with IDS? An IDS file states exactly what a model must contain: object classes, required attributes, allowed values and relationships. The audit compares these expectations against the actual revision content and lists the gaps. You save time on quality checks and cut down back-and-forth between project stakeholders.

Glossary

Prerequisites

• A SeveUp App account with access to the BIM module.
• A valid .ids file if you choose to import.
• At least one IFC revision in a folder so you can link a requirement.

Create a requirement

Open the BIM requirements screen. Click the New requirement button. Fill in the name, type and description, then save. The confirmation banner shows "Requirement saved".

You can edit an existing requirement at any time. Click its row, make your changes and save.

Import IDS files

1. Select your files

   Click Import IDS files. The modal opens on the Files step. Drop your .ids files into the drop zone or click Browse files.

2. Review the names

   Move to the Names step. Review the name and description of each requirement.

3. Link folders (optional)

   On the Link step, optionally attach existing folders. The Search folders… field helps filter the list. If no folder matches, the message "No folders found" appears.

4. Run the import

   When everything is ready, click Import # requirements. The message "# requirements imported" confirms the operation.

Link a requirement to a revision

Open the requirement record. Choose the IFC revision to audit. The audit starts automatically as soon as the link is set. Results appear in the revision's compliance report.

What can go wrong

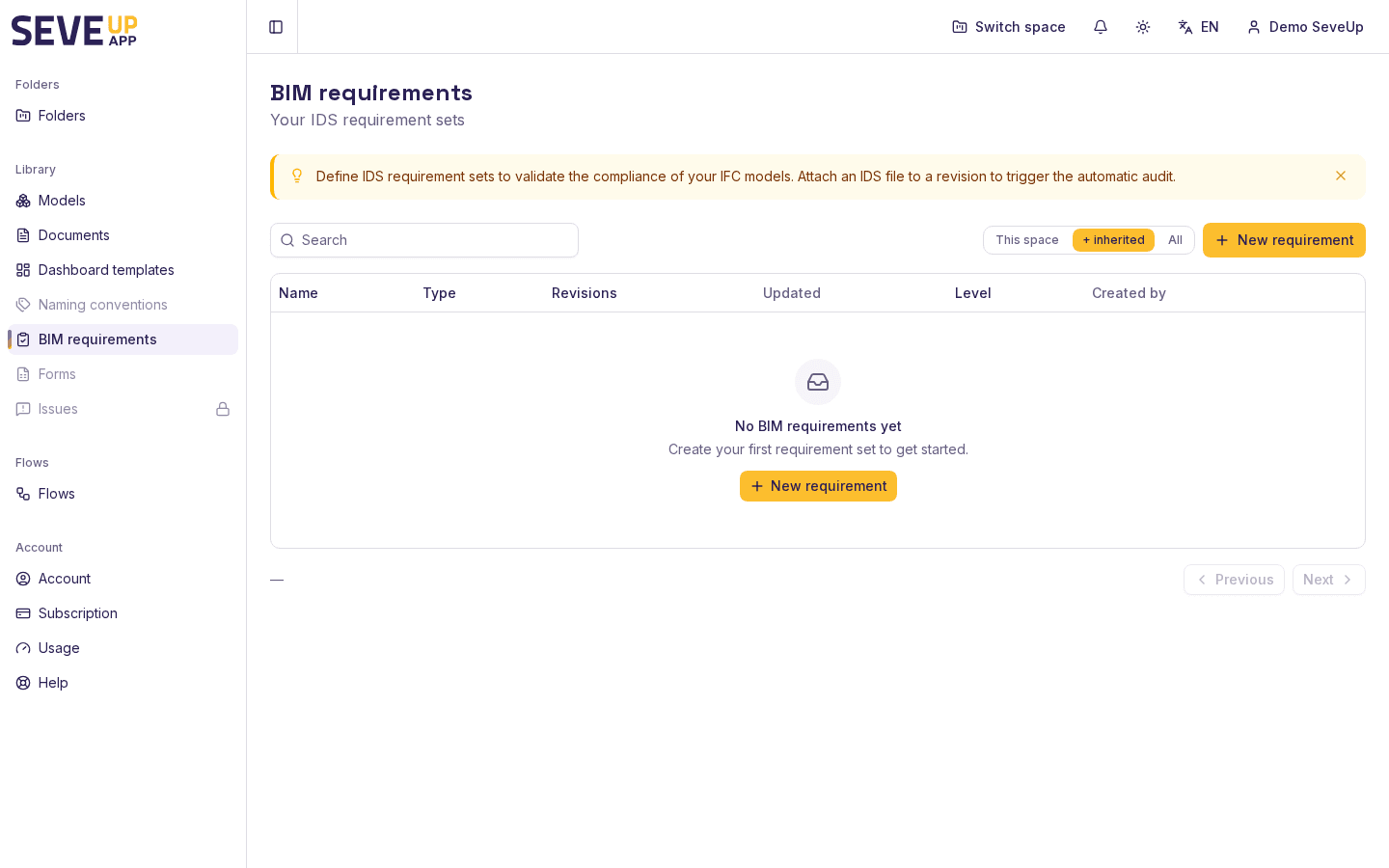

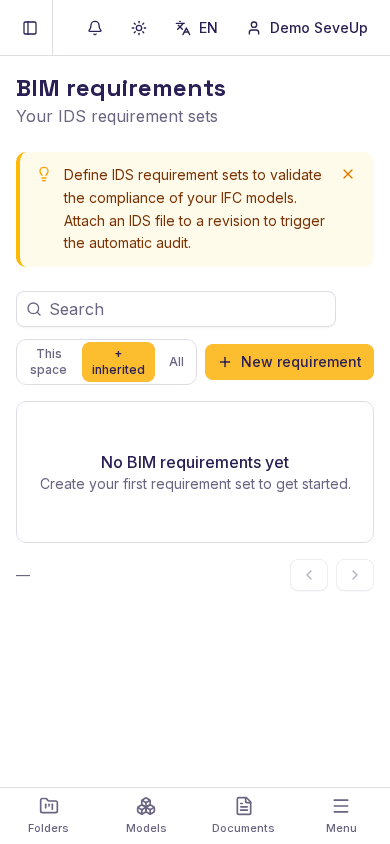

"No BIM requirements yet"

The list is empty. Create a requirement or import an .ids file to get started.

"Could not load BIM requirements"

The server did not respond. Reload the page or check your connection.

"All uploads failed."

The .ids file may be malformed, empty or too large. Open it in an XML editor to check the syntax.

"Failed to create requirement."

A required field is missing or the name already exists. Fix the form and try again.

"Delete permanently"

This action clears the linked revision history. The record can be archived, but its revision data will not be recoverable.

FAQ

What does an IDS file contain?

An IDS file lists technical requirements for a model: expected object classes, required attributes, allowed values and relationships between objects.

How do I attach an IDS file to an IFC revision?

Create or import the requirement, open its record and select the relevant revision. The audit starts on its own.

Can I import several requirements at once?

Yes. The Import IDS files modal accepts multiple .ids files. Each one becomes a separate requirement set.

What happens when I delete a requirement?

Standard deletion archives the record. You can restore it with Restore, but without past revisions. Permanent deletion, available via Delete permanently, cannot be undone.

Why does the audit not start?

Check that the requirement is linked to a revision and that the IDS file is valid. A revision with no linked requirement will not trigger an audit.
